7 Replacing the intermediate transport roller assy

1. Remove the rear right cover/2.
2. Rear right cover/2
2. Open the lower right door.

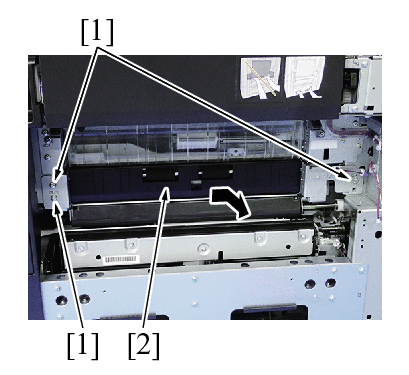

3. Remove three screws [1] and remove the lower right door [2] by sliding it to the direction indicated in the figure.

4.

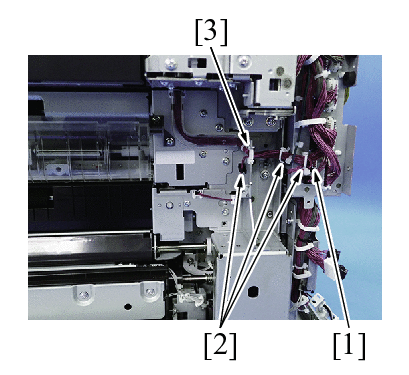

4. Disconnect the connector [1] and remove the harness from three wire saddles [2] and the edge cover [3].

5.

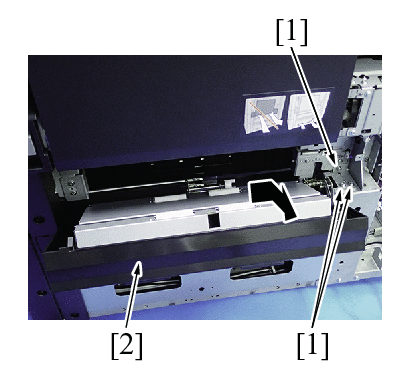

5. Remove three screws [1] and remove the intermediate transport roller assy [2] by sliding it to the direction indicated in the figure.

6.

6. To reinstall, reverse the order of removal.
