3.1. Removal procedure

(Video: Disassembly the Transfer belt unit)

1. Open the right door.
2. Release three tabs [1], and remove the 2nd transfer paper winding prevention guide [2].

3.

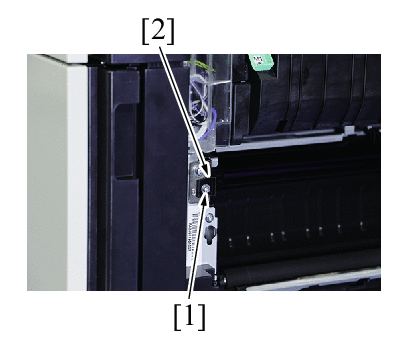

3. Remove the screw [1], and remove the stopper [2].

4.

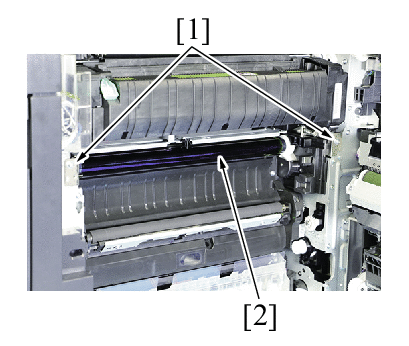

4. Remove two screws [1] and unlock the transfer belt unit [2].

5.

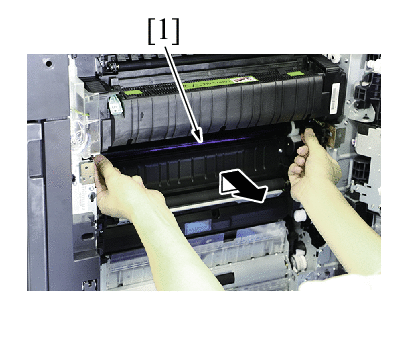

5. Hold the both sides and lift it to take out the transfer belt unit [1] a little.

6.

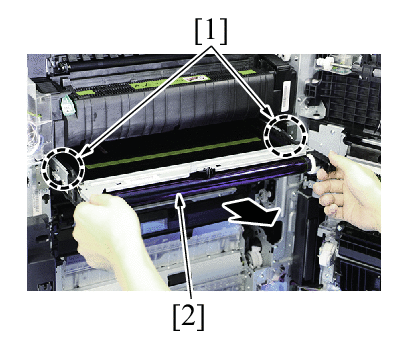

6. Hold the position [1] shown in the illustration and remove the transfer belt unit [2].
7. NOTE
• Do not touch the surface of the transfer belt unit.
• Cover the transfer belt unit with something such shade cloth to protect its surface from dust or foreign matter.
• If accidentally touched the surface of the transfer belt, lightly wipe it using the Hydro-wipe (65AA-99##). Do not clean with alcohol or water.
