1.1. Removal procedure

Video:Replacing the drum unit

  1. Open the lower front door.
  2. Remove the waste toner transport unit/waste toner box.
  3. Waste toner transport unit/waste toner box

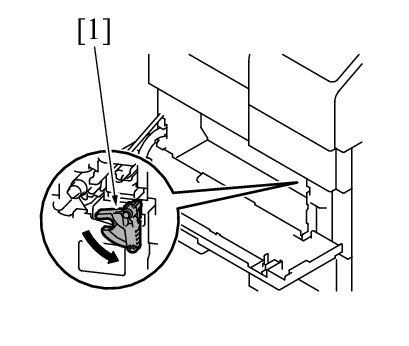

  4. Turn the drum unit lock lever [1] and release the lock.

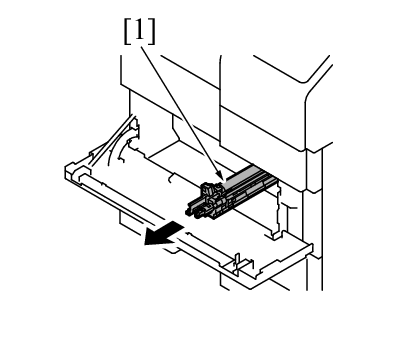

  6. Pull the drum unit [1] to you and remove it from the machine.
